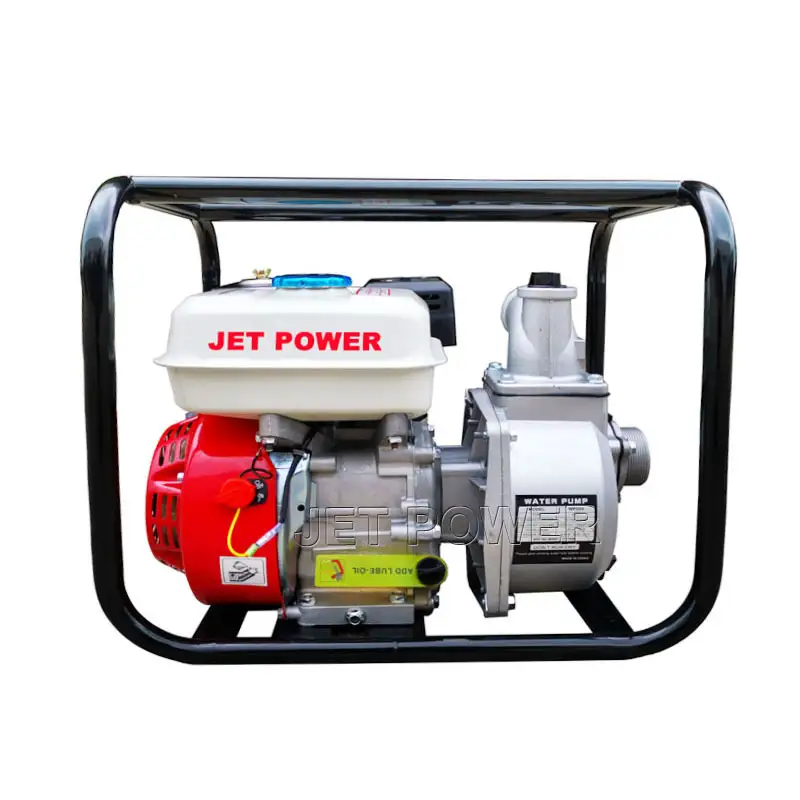

Wholesale Gasoline Engine Water Pump Manufacture And Supply
Brand: JET POWER
Gasoline Water Pump
Size: 2 inch, 3 inch, 4 inch
Powered by Air cooled Gasoline Engine
PRODUCT DESCRIPTION
■ Neat and economical for classical design.
■ Frame designed for better protection.
■ Oil alert system with automatic engine shut-off.
■4-stroke, OHV (overhead valve), single cylinder, air-cooled engine. Cast iron cylinder lining
■ Large muffler for quiet operation.
■ CE,EC-II,EPA,CARB,EMC approved
_________________________________________________________________________________________________________________________
• Brand new engine 4-Strokes, Air cooled
• Rated Speed: 3000rpm / 3600rpm
• Start type: Manual Start or Electrical Start
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤25°C
• Automatic mechanical de-compression system
• Improved camshaft and muffler reduce overall engine noise by up to 5 dB
• Reduced mechanical noise due to piston design
• Forged steel crankshaft and rigid crankcase
• Helical cut gears Sophisticated air intake system
• All aluminum pump body, light weight and high strength
• Cast iron impeller, more durable
• Mechanical seal, stainless steel material, longer life
• Ambient air temperature: ≤40°
01
Start System
• Gasoline Water Pump Standard control panel
• Recoil manual start.
02
Accessories
Standard accessories: Standard tool kit, Connector, Water filter ,Fastening ring, operation manual
03
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.
04
Product Warranty policy
JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
PRODUCT SPECIFICATIONS
| Model | WP-20 | WP-30 | WP-40 |
| Type | Gasoline water pump | Gasoline water pump | Gasoline water pump |
| Suction & discharge port diameter(mm)(in) | 50 (2 inch) | 80 (3 inch) | 100 (4 inch) |
| Flow (m³/h) | 22 | 30 | 80 |
| Lift total (m) | 30m | 28m | 25m |
| Self-priming time(s/4m) | 90 | 120 | 180 |
| Max.suction head(m) | 8 | 8 | 8 |
| Drive type | Direct | Direct | Direct |
| Engine model | GE160 (168F) | GE200(168FA) | GE390 (188F) |
| Engine power (Hp) | 5.5HP | 6.5HP | 13HP |
| Rated speed(r/min) | 3600 | 3600 | 3600 |
| Fuel consumption(g/kW.h) | 395 | 395 | 374 |
| Displacement(cm3) | 163 | 196 | 389 |
| Starter system | Recoil starter | Recoil starter | Recoil starter |
| Net weight(kg) | 24 | 26 | 43 |
| Dimension（L x W x H）mm | 480×370×400 | 510×370×430 | 640×460×520 |
| 20GP Container (Qty) | 365 | 345 | 180 |
| 40HQ Container (Qty) | 905 | 840 | 465 |
