60Hz Water Cooled YANGDONG Diesel Generator Set Wholesale

60Hz Water Cooled YANGDONG Diesel Generator Set Wholesale

Brand:: JET POWER

Factory Price:: Negotiate

Port:: FUZHOU, CHINA

Payment Terms:: L/C, Cash, Western Union, T/T

ODM & OEM:: Available

Certification: ISO9001, CE

Price: Get Latest Price

Inquire Online

Get the latest price

Quantity Needed：

Pieces

E-mail：

• Output:11kVA - 55KVA
• Powered by YANGDONG
• Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
• Open type / Silent type
• Optional: ATS system, AMF function, Parallel system.

PRODUCT DESCRIPTION

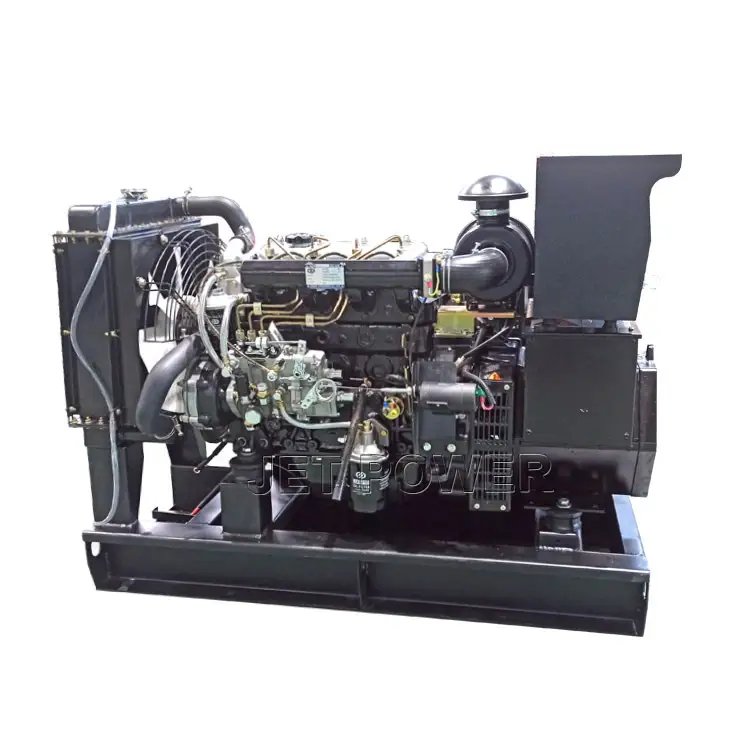

Silent diesel generator set, Powered by YANGDONG ENGINE

Soundproof diesel generator set

Safety – Stability – Economy - Reliability Power

01. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
02. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.
03. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working
04. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power
05. Generator set use High-quality steel are thickness canopy --2MM to 10MM
06. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
07. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
08. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
09. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

_________________________________________________________________________________________________________________________

DIESEL ENGINE

Powered by Cummins Engine, Perkins Engine, Deutz , LOVOL , Lister Petter , Doosan , Yanmar , Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
• Brand new engine 4-Strokes,Water cooled, direct injection engine
• Rated Speed: 1500rpm / 1800rpm
• Start type: 12V or 24V DC Electrical Start
• Governing control: Mechanical or Electrical
• Radiator standard: 50°environment temperature
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°C

A.C ALTERNATOR

Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
• Generator Phase and connecting: 3 phase, 4wire.
• Rated frequency: 50Hz@1500rpm / 60Hz@1800rpm.
• Alternator excited type: Brushless, self excited or PMG optional
• Alternator Insulation: Class H， Protection: IP21 ~ IP23
• Voltage regulation: AVR automatic control 1%
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°
• Relative air humidity: ≤ 90%
Complies with the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

→

Controller System

• DSE6020, HGM6120N, DSE7320 (AMF) Series Standard control panel, Optional Automatic transfer switch (ATS) and Automatic parallel operation system, Remote control system.

• Automatic transfer switch (ATS) and Automatic parallel operation system

→

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

→

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

→

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

PRODUCT SPECIFICATIONS

Model

416V / 60Hz / 1800RPM

Yangdong Diesel Engine 1800rpm

Alternator / 60Hz

Open type

Soundproof type

Standby output

Prime Output

Model / Output

Engine type

Displacement

Bore×Stroke

Stamford type

Packing (mm)

Weight

Packing (mm)

Weight

KVA

No. of Cylinder

Governor

(L)

(MM)

Brushless type

(L x W x H)

YD-11

9.6

8.8

YD385D/13KW

Mechanical

1.532

85×90

JET164B/8.8KW

1650*800*1000

510

2100*900*1100

720

YD-14

YD385D/13KW

Mechanical

1.532

85×90

JET164C/11KW

1650*800*1000

530

2100*900*1100

740

YD-16

17.5

YD480D/17KW

Mechanical

1.809

80×90

JET164D/13KW

1650*800*1000

580

2100*900*1100

790

YD-20

17.6

YND485D/20KW

Mechanical

2.043

85×90

JET164D/16KW

1650*800*1000

600

2200*1000*1150

800

YD-25

27.5

YSD490D/25KW

Mechanical

2.54

90×100

JET184E/20KW

1800*800*1100

750

2200*1000*1150

980

YD-30

26.4

Y4100D/333KW

Mechanical

3.298

100×105

JET184F/24KW

1800*800*1100

800

2200*1000*1150

1030

YD-38

37.5

Y4102D/39.6KW

Mechanical

3.857

102×118

JET184G/30KW

1900*900*1250

910

2300*1000*1300

1150

YD-50

Y4102ZD/48KW

Mechanical

3.857

102×118

JET184J/40KW

1900*900*1250

980

2300*1000*1300

1230
