Wholesale Water Cooled DEUTZ Diesel Engine Generator Set

Wholesale Water Cooled DEUTZ Diesel Engine Generator Set

Brand:: JET POWER

Factory Price:: Negotiate

Port:: FUZHOU, CHINA

Payment Terms:: L/C, Cash, Western Union, T/T

ODM & OEM:: Available

Certification: ISO9001, CE

Price: Get Latest Price

Inquire Online

Get the latest price

Quantity Needed：

Pieces

E-mail：

• Output:15kVA - 825KVA
• Powered by DEUTZ
• Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
• Open type / Silent type
• Optional: ATS system, AMF function, Parallel system.

PRODUCT DESCRIPTION

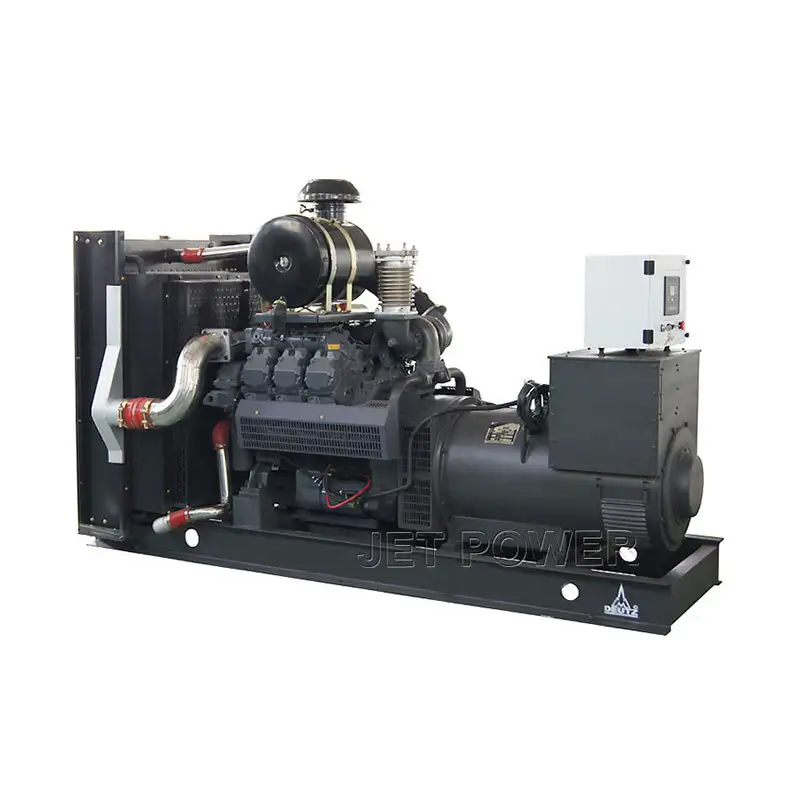

Silent diesel generator set, Powered by DEUTZ ENGINE

Soundproof diesel generator set

Safety – Stability – Economy - Reliability Power

01. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
02. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.
03. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working
04. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power
05. Generator set use High-quality steel are thickness canopy --2MM to 10MM
06. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
07. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
08. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
09. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

_________________________________________________________________________________________________________________________

DIESEL ENGINE

Powered by Cummins Engine, Perkins Engine, Deutz , LOVOL , Lister Petter , Doosan , Yanmar , Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
• Brand new engine 4-Strokes,Water cooled, direct injection engine
• Rated Speed: 1500rpm / 1800rpm
• Start type: 12V or 24V DC Electrical Start
• Governing control: Mechanical or Electrical
• Radiator standard: 50°environment temperature
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°C

A.C ALTERNATOR

Self-regulation is obtained through a digital electronic regulator that is fed by an auxiliary winding.The windings have a 2/3 pitch in order to reduce the harmonic content of voltage.
• Generator Phase and connecting: 3 phase, 4wire.
• Rated frequency: 50Hz@1500rpm / 60Hz@1800rpm.
• Alternator excited type: Brushless, self excited or PMG optional
• Alternator Insulation: Class H， Protection: IP21 ~ IP23
• Voltage regulation: AVR automatic control 1%
• Altitude above sea level: ≤1000 meters
• Ambient air temperature: ≤40°
• Relative air humidity: ≤ 90%
Complies with the most common specifications such as CEI 2-3, IEC 34-1, EN 60034-1, VDE 0530, BS 4999-5000, CAN/ CSA-C22.2 No14-95- No100-95.

→

Controller System

• DSE6020, HGM6120N, DSE7320 (AMF) Series Standard control panel, Optional Automatic transfer switch (ATS) and Automatic parallel operation system, Remote control system.

• Automatic transfer switch (ATS) and Automatic parallel operation system

→

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

→

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

→

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

PRODUCT SPECIFICATIONS

Model	400V / 50Hz / 1500RPM				DEUTZ Diesel Engine					Alternator
	Standby Output		Prime Output		Model	Engine type		Displacement	Bore×Stroke	Brushless
	KVA	KW	KVA	KW	Model	No. of Cylinder	Governor	(L)	(MM)	Brushless
POWERED BY AIR COOLED DEUTZ TECHNOLOGY ENGINE
AD-17	17	13	15	12	F2L912	L2	Mech.	1.88	100x120	JET164D
AD-28	28	22	25	20	F3L912	L3	Mech.	2.828	100x120	JET184F
AD-33	33	26	30	24	F4L912	L4	Mech.	3.77	100x120	JET184G
AD-44	44	35	40	32	F4L912T	L4	Mech.	3.77	100x120	JET184J
AD-55	55	44	50	40	F6L912	L6	Mech.	5.655	100x120	JET224D
AD-69	69	55	62.5	50	F6L912T	L6	Mech.	5.655	100x120	JET224E
AD-103	103	82.5	94	75	F6L913	L6	Electric	6.128	102x125	JET274C
AD-138	138	110	125	100	F6L913C	L6	Electric	6.128	102x125	JET274ES
POWERED BY WATER COOLED DEUTZ ENGINE
D-22	22	17.6	20	16	BFM3 G1	L4	Mech.	3.168	98x105	JET184D
D-30	33	26.4	30	24	BFM3 G2	L4	Mech.	3.168	98x105	JET184G
D-44	44	35.2	40	32	BFM3T	L4	Mech.	3.168	98x105	JET184J
D-50	50	40	45	36	BFM3C	L4	Mech.	3.168	98x105	JET224D
D-63	63	50.6	58	46	BF4M2012	L4	Mech.	4.04	101x126	JET224E
D-69	69	55	63	50	BF4M2012C G1	L4	Mech.	4.04	101x126	JET224E
D-83	83	66	75	60	BF4M2012C G1	L4	Mech.	4.04	101x126	JET 224F
D-100	100	80	90	72	BF4M2012C G2	L4	Mech.	4.764	108x130	JET224G1
D-110	110	88	100	80	BF4M1013EC G1	L4	Mech.	4.764	108x130	JET274C
D-126	126	101	115	92	BF4M1013EC G2	L4	Mech.	4.764	108x130	JET274D
D-138	138	110	125	100	BF4M1013FC	L4	Mech.	4.764	108x130	JET274D1
D-175	175	140	160	128	BF6M1013EC G1	L6	Mech.	7.146	108x130	JET274F
D-193	193	154	175	140	BF6M1013EC G2	L6	Mech.	7.146	108x130	JET274G
D-206	206	165	188	150	BF6M1013FC G2	L6	Mech.	7.146	108x130	JET274G1
D-220	220	176	200	160	BF6M1013FC G3	L6	Mech.	7.146	108x130	JET274H
D-250	250	200	225	180	BF6M1015-LA GA	6V	Electric	11.906	132x145	JET274J
D-275	275	220	250	200	BF6M1015C-LA G1A	6V	Electric	11.906	132x145	JET274K
D-303	303	242	275	220	BF6M1015C-LA G2A	6V	Electric	11.906	132x145	JET444D
D-344	344	275	313	250	BF6M1015C-LA G3A	6V	Electric	11.906	132x145	JET444E
D-385	385	308	350	280	BF6M1015C-LA G4	6V	Electric	11.906	132x145	JET444FS
D-413	413	330	375	300	BF6M1015CP-LA G	6V	Electric	11.906	132x145	JET444FS
D-481	481	385	438	350	BF8M1015C-LA G1A	8V	Electric	15.874	132x145	JET544C
D-500	500	400	450	360	BF8M1015C-LA G2	8V	Electric	15.874	132x145	JET544C
D-550	550	440	500	400	BF8M1015CP-LA G2	8V	Electric	15.874	132x145	JET544D
D-625	625	500	563	450	BF8M1015CP-LA G5	8V	Electric	15.874	132x145	JET544E
D-688	688	550	625	500	HC12V132ZL-LAG1A	12V	Electric	23.812	132x145	JET544FS
D-750	750	600	688	550	HC12V132ZL-LAG1A	12V	Electric	23.812	132x145	JET544F
D-825	825	660	750	600	HC12V132ZL-LAG2A	12V	Electric	23.812	132x145	JET634B
