Soundproof Water Cooled MITSUBISHI Diesel Generator Set

该产品后台详情无内容

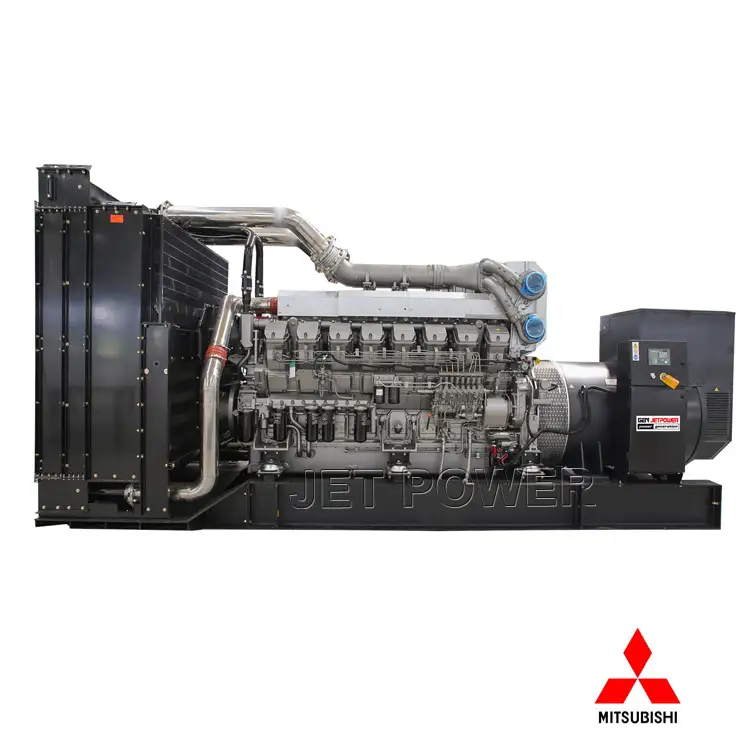

Soundproof Water Cooled MITSUBISHI Diesel Generator Set

Soundproof Water Cooled MITSUBISHI Diesel Generator Set

Brand:
JET POWER
Factory Price:
Negotiate
Port:
FUZHOU, CHINA
Payment Terms:
L/C, Cash, Western Union, T/T
ODM & OEM:
Available
Certification
ISO9001, CE
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
  1. • Output:650kVA - 2500KVA
  2. • Powered by MITSUBISHI
  3. • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  4. • Open type / Silent type
  5. • Optional: ATS system, AMF function, Parallel system.

PRODUCT DESCRIPTION

Silent diesel generator set, Powered by MITSUBISHI ENGINE Soundproof diesel generator set Safety – Stability – Economy -  Reliability Power

01. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
02. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.
03. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working
04. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power
05. Generator set use High-quality steel are thickness canopy --2MM to 10MM
06. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
07. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
08. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
09. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

_________________________________________________________________________________________________________________________

01

Controller System

DSE6020, HGM6120N, DSE7320 (AMF) Series Standard control panel, Optional Automatic transfer switch (ATS) and Automatic parallel operation system, Remote control system.

Automatic transfer switch (ATS) and Automatic parallel operation system

02

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

03

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

04

PRODUCT SPECIFICATIONS


Model400V   / 50Hz / 1500rpmMITSUBISHI   DIESEL ENGINE
AlternatorOpen   typeSoundproof   type
Standby PowerPrime   PowerEngineNo. of   Cylinders / Alignment Bore/StrokeDisplacementFuel   Consumption of Full LoadGoverning   Type Compression Ratio Packing   (mm)WeightPacking   (mm)Weight
kVAkWkVAkW(MM)(L)(L/h)Stamford (L x W x H)Kg (L x W x H)Kg
M-715715572650520S6R2-PTA-C/575KW6L170×12029.96124L/h Electronic14.1HCI544F/570KVA3650*1600*190056204600*2000*22506620
M-825825660750600S6R2-PTAA-C/645KW6L170×22029.96158L/hElectronic14.1HCI634G/800KVA3650*1600*190058504600*2000*22506850
M-13751375110012501000S12R-PTA-C/1080KW12V170×18049.03247L/hElectronic14.0PI734A/1260KVA4600*2220*250094006050*2435*258511400
M-15001500120013751100S12R-PTA2-C/1165KW12V170×18049.03272L/hElectronic13.5PI734B/1400KVA4600*2220*250096006050*2435*258511600
M-16501650132015001200S12R-PTAA2-C/1277KW12V170×18049.03331L/hElectronic13.5PI734C/1550KVA4600*2220*250098006050*2435*258511800
M-18751875150017001360S16R-PTA-C/1450KW16V170×18065.37370L/hElectronic14.0PI734ES/1775KVA5680*2350*29801175012192*2435*289614750
M-20632062.5165018751500S16R-PTA2-C/1600KW16V170×18065.37408L/hElectronic13.5PI   734E/1900KVA5680*2350*29801360012192*2435*289616600
M-22002200176020001600S16R-PTAA2-C   /1684KW16V170×18065.37441L/h Electronic14.0PI   734F/2080KVA6050*2450*3460 1470012192*2435*289617700
M-25002500200022501800S16R2-PTAW-C/1960KW16V170×22079.9484L/hElectronic14.0PI734G/2200KVA6050*2450*3460 1520012192*2435*289618200
